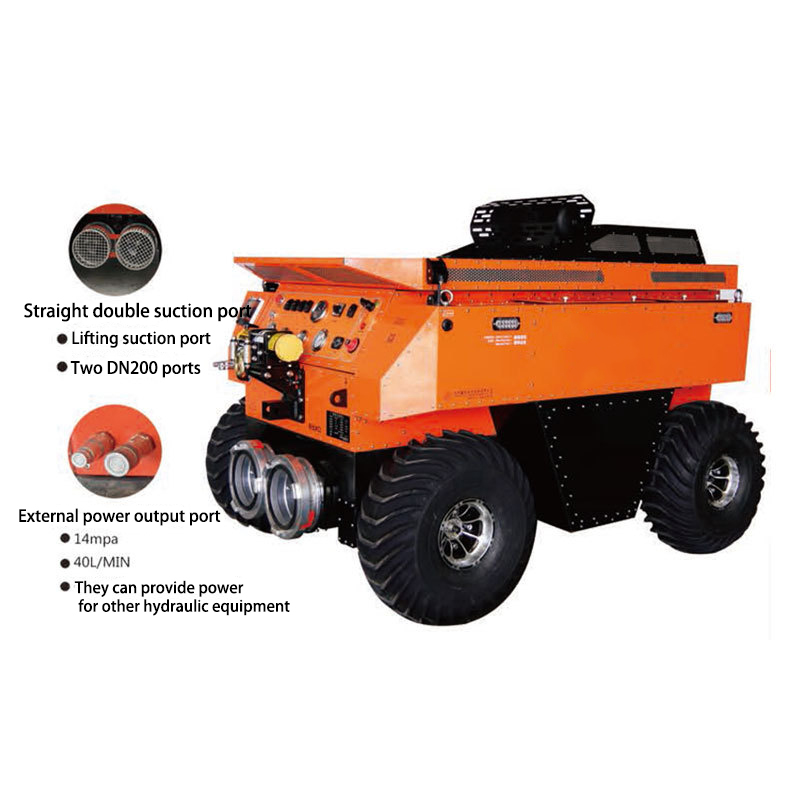

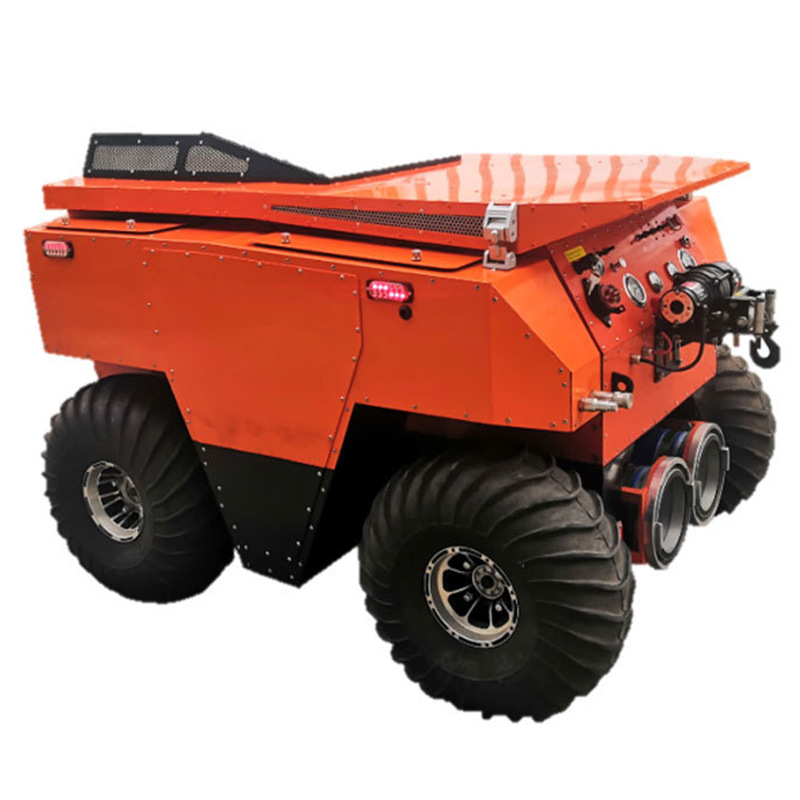

Self-propelled water supply and drainage pump vehicule/Drainage robot

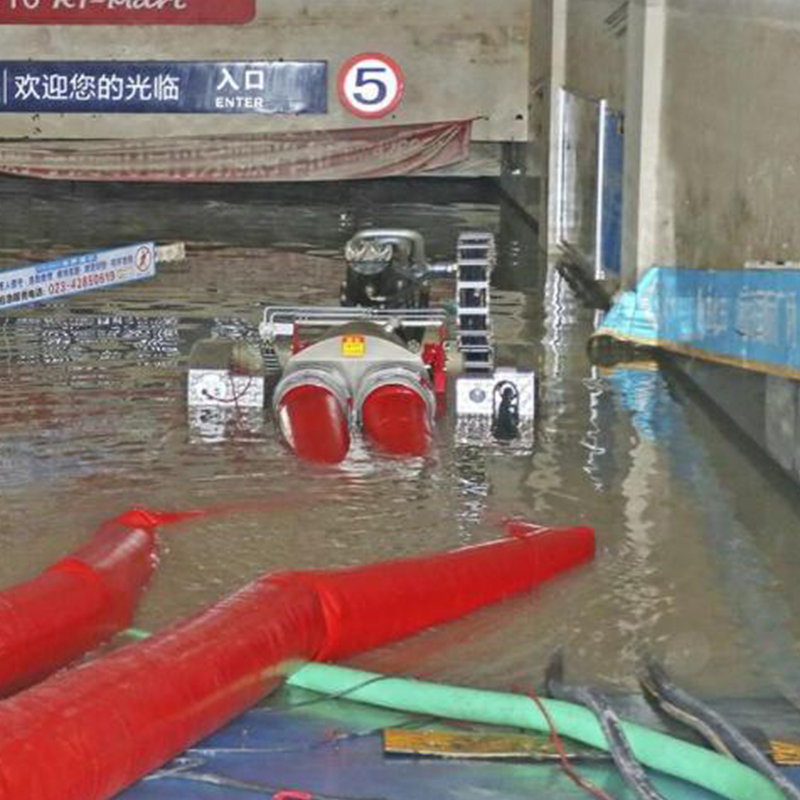

Drainage robot is mainly used to remove large-scale water accumulation in low-lying locations such as bridges, culverts, and underground garages that are inconvenient for emergency personnel to enter. It reduces the labor intensity of the operation and can move the robot remotely with the change of the water level. Equipped with imported hydraulic power station and hydraulic drainage pump. The servo proportional hydraulic valve is used for remote control, and the accelerator and mode switching can be operated remotely; the front and rear of the car body are equipped with tow hooks to fix cables and wire ropes.
The whole machine adopts hydraulic drive, which has strong weather resistance, large torque, strong load capacity, impact resistance, easy maintenance and high reliability.
The robot can discharge solid particles with a diameter of less than 25mm, and the displacement can reach 600 cubic meters per hour at a height of 6 meters. The main body of the pump is made of stainless steel and adopts a guide vane structure, which is light in structure and unique in shape. Adopt high-strength engineering rubber track. The driving wheels are made of high-strength steel, and the rollers are made of aluminum, which is electrophoretic treated to effectively prevent corrosion. Sealed bearings are used to fully consider the underwater operating environment. Imported hydraulic components, proportional control for walking, adjustable speed; integrated multi-way valve, switching between walking/drainage mode.
