Description Parameters
Description

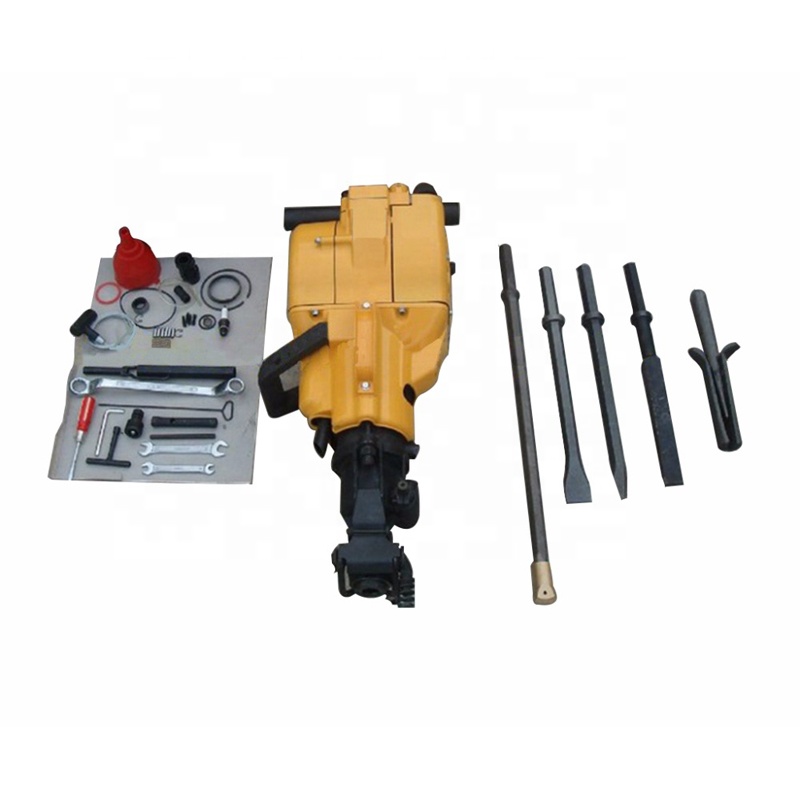

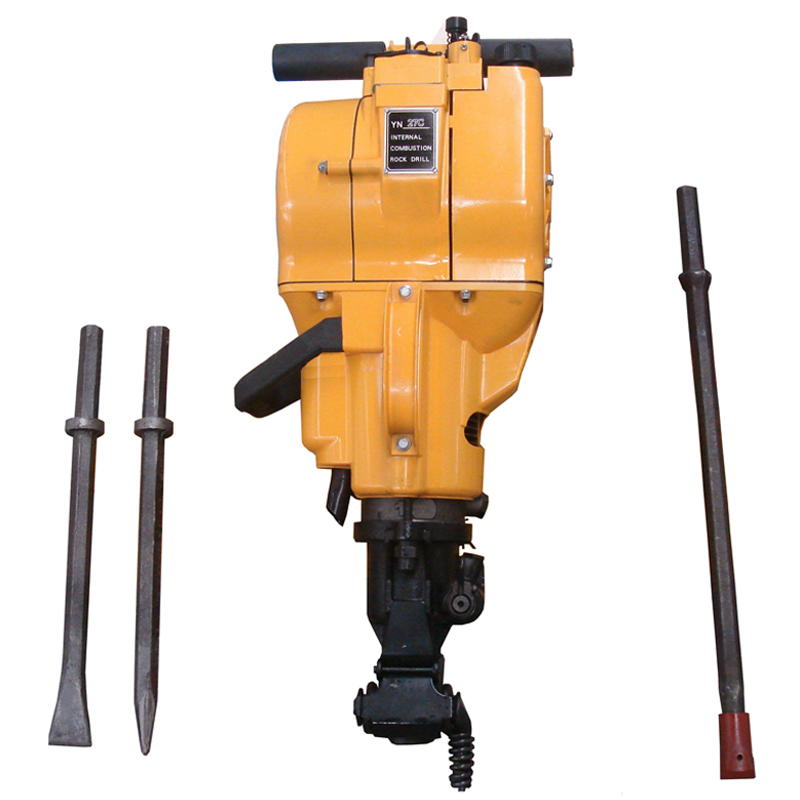

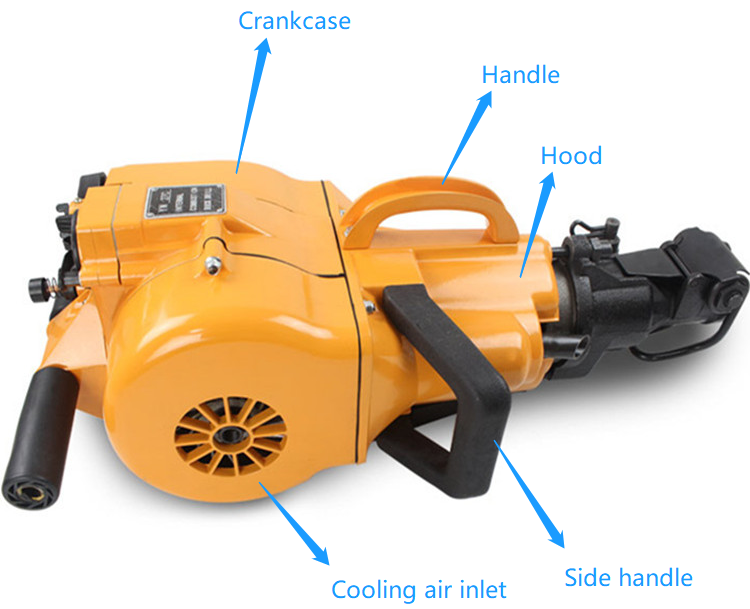

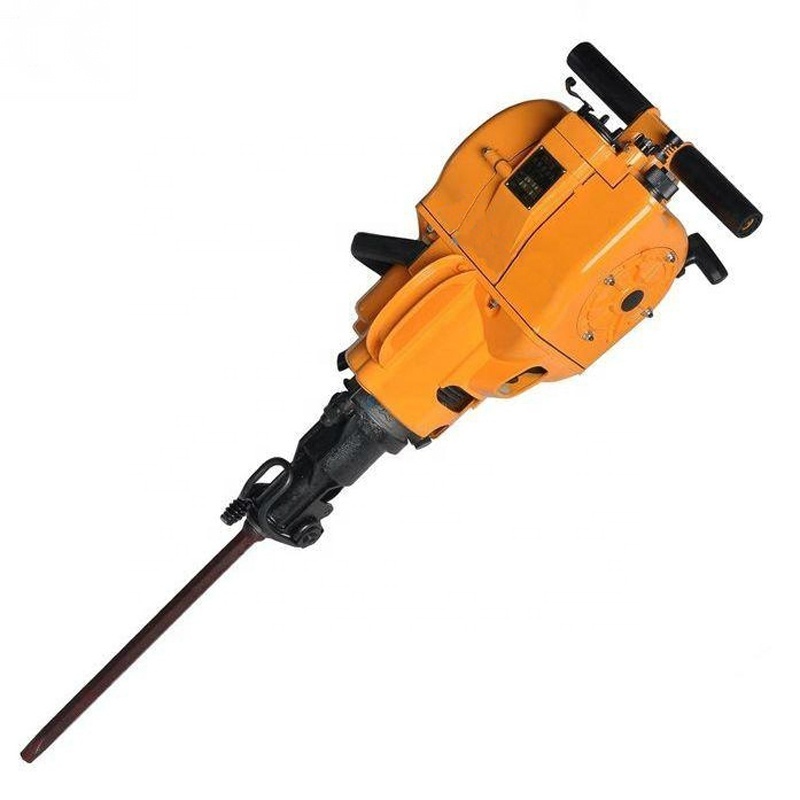

Rock drill



Rock drill has the functions of drilling, splitting, crushing,tamping, shovel, etc. It can drill holes in the rock, and it can drill down to 6 meters vertically. And it is widely used in mining, road construction, quarrying,  etc.



Advantage:
1. Small size and lightweight, easy to carry. Weighs only 27kg
2. The machine can still work normally in a harsh operating environment (± 40 °) and has excellent adaptability.
3. The machine is easy to operate, saves time and effort, and features fast rock drilling and high efficiency.









Parameters


Rock drill



Weight
27Kg
Overall Dimension
746*315*229mm
Engine
Single culinder,air cooled two strokes
Cylinder Diameter*Stroke Piston
58*70mm
Rotating Speed of Engine
More than 2450r/min
Displacement Of Engine
185cm3
Carburetor
Hand needle valve,no floating type
Lginition System
Contrpllable silicon contactless system
Drilling Speed
More than 250r/min
Max Drilling Depth
6M
Fuel Consumption
0.12L/min
Tank Capacity
1.65L
Mixing Ratio of Gasoline and Lubrication Oil
8:1
End of Drill Rod Dimensions
Hexagonal 22*108mm
Rotating Speed of Drill Rod
More than 200r/min
Clearance of Spark Plug
0.5-0.7mm
