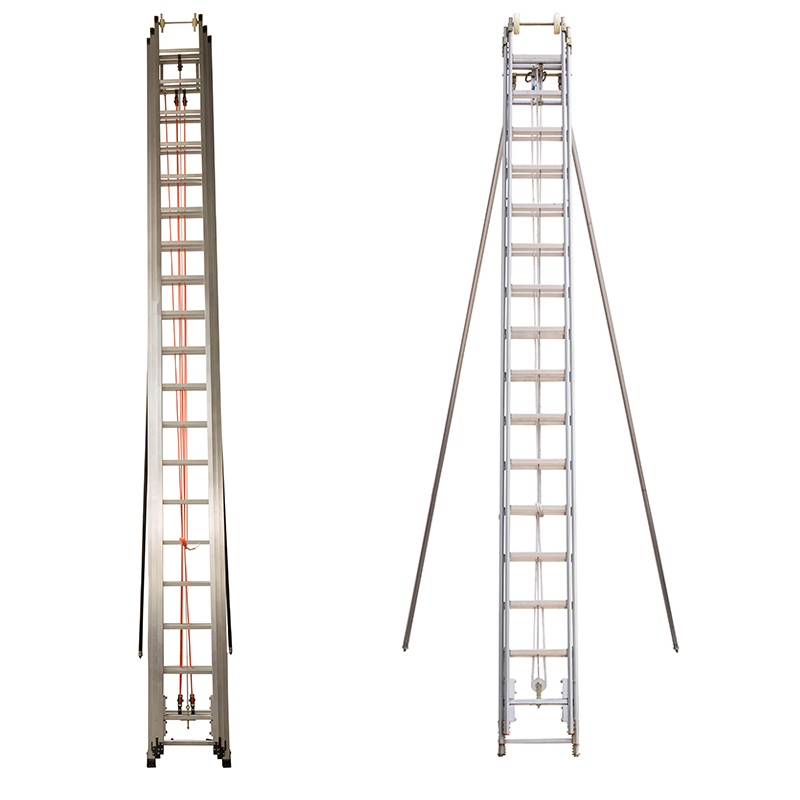

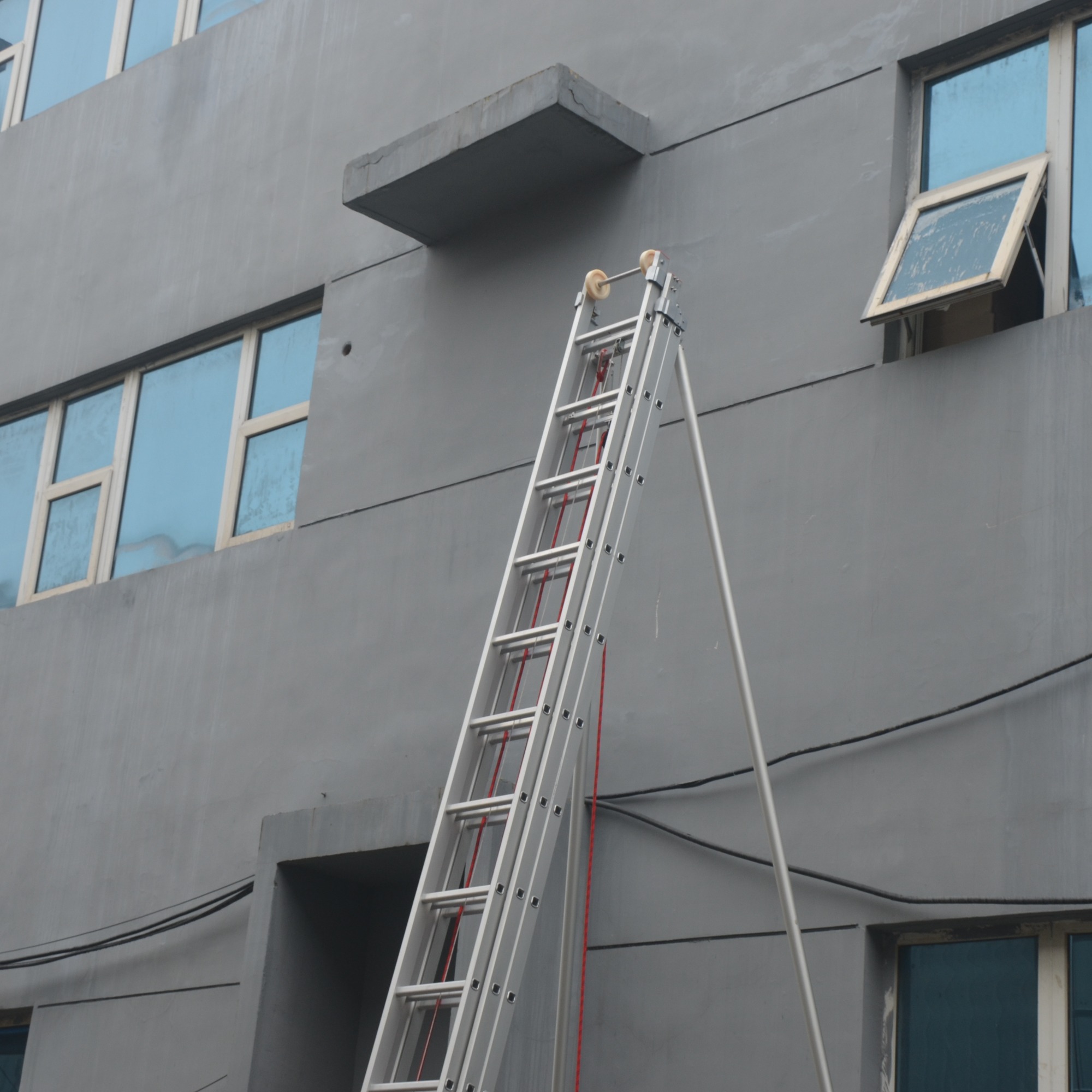

Pulling rescue ladder

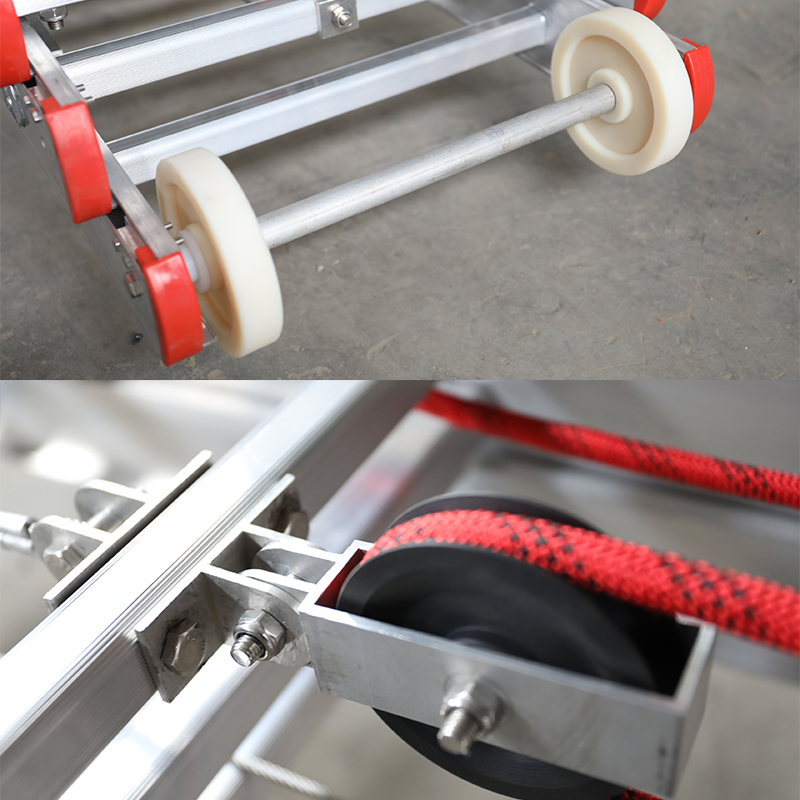

High strength aluminum alloy, the pulling ladder in the expansion and condensation process, the limiting device is safe and reliable when expansion and condensation the pulling ladder. Can be used for fire fighting, rescue, aerial rescue firefighting operation; especially in the city without climbing cart , and fire channel narrow, climbing car cannot be reached the scene, while the ordinary ladder at the scene and not up to the required height, the ladder can be matched with a fire extinguisher, relief; can also be used for factories, mines, and other high multi-storey building repair and a variety of climbing.
|
Height m |
15±0.3 |
12±0.3 |
9±0.2 |
6±0.2 |
|
ladder rung gap mm |
300±2 |
300±2 |
300±2 |
300±2 |
|
Mini width mm |
350±4 |
350±4 |
310±2 |
310±3 |
|
Weight kg |
≤100 |
≤95 |
≤55 |
≤35 |
