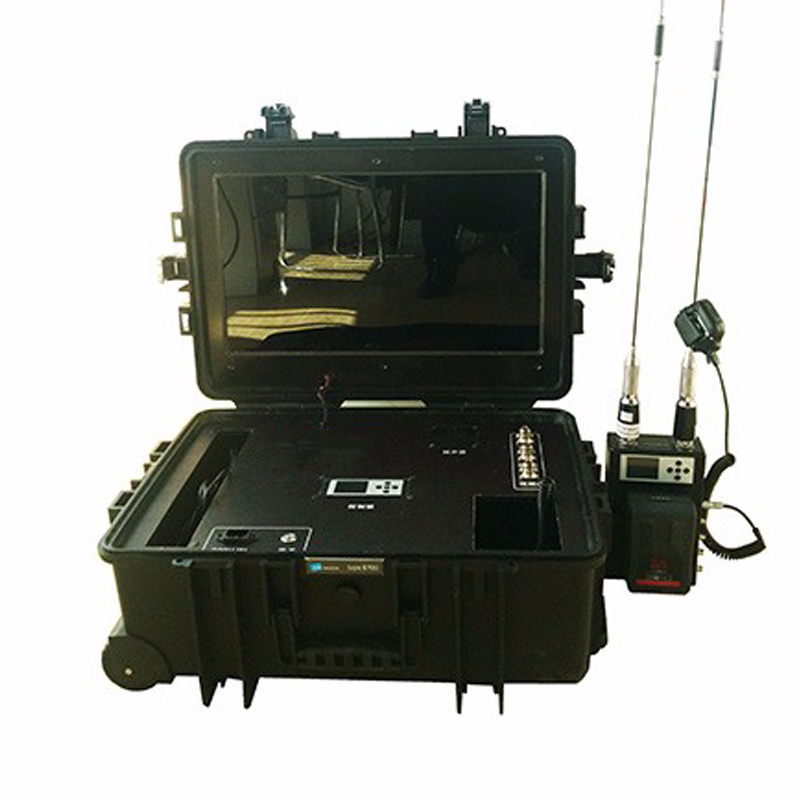

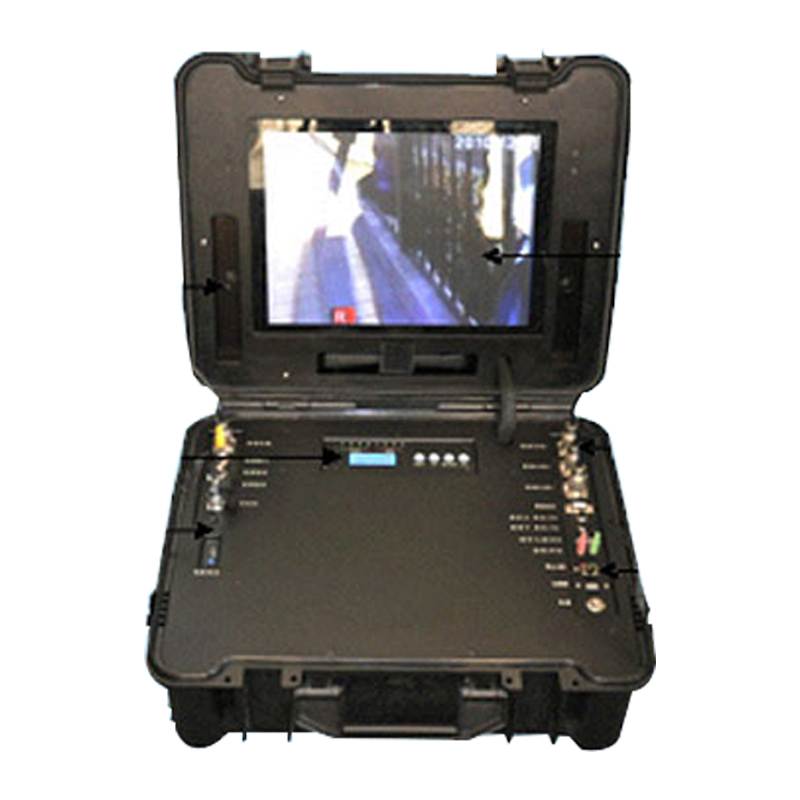

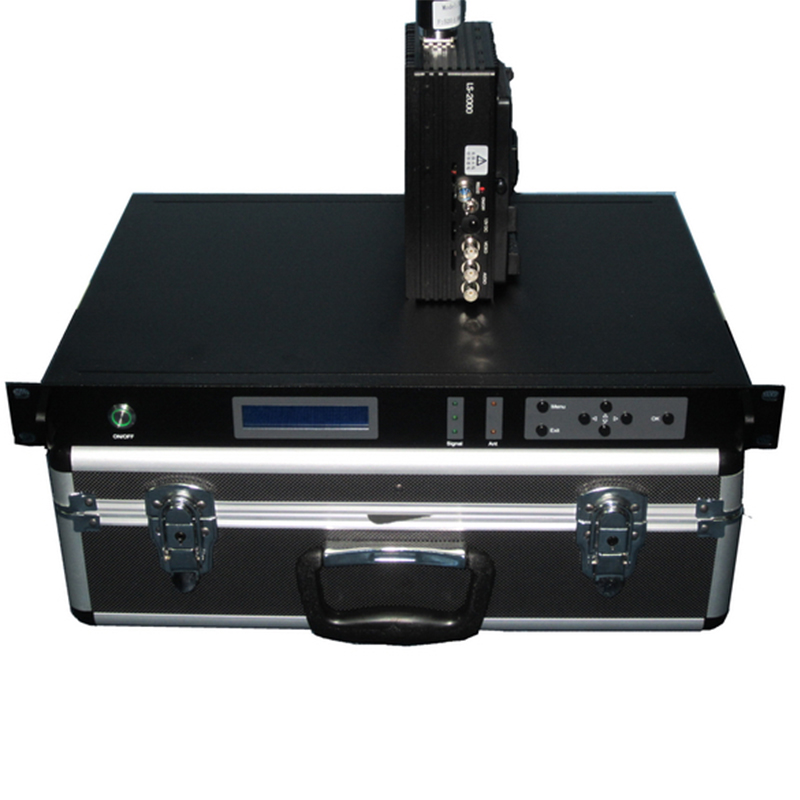

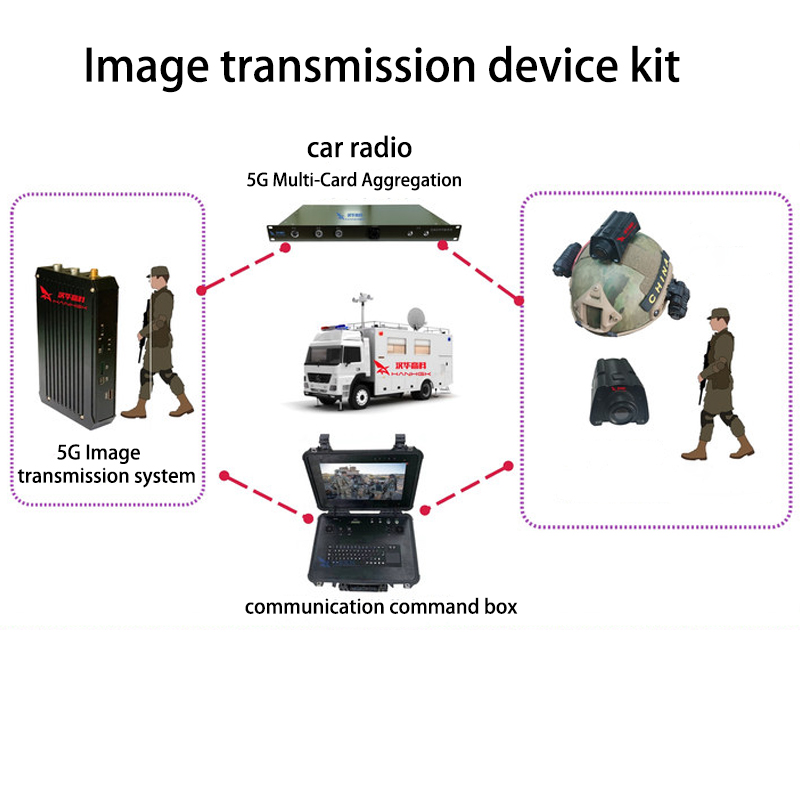

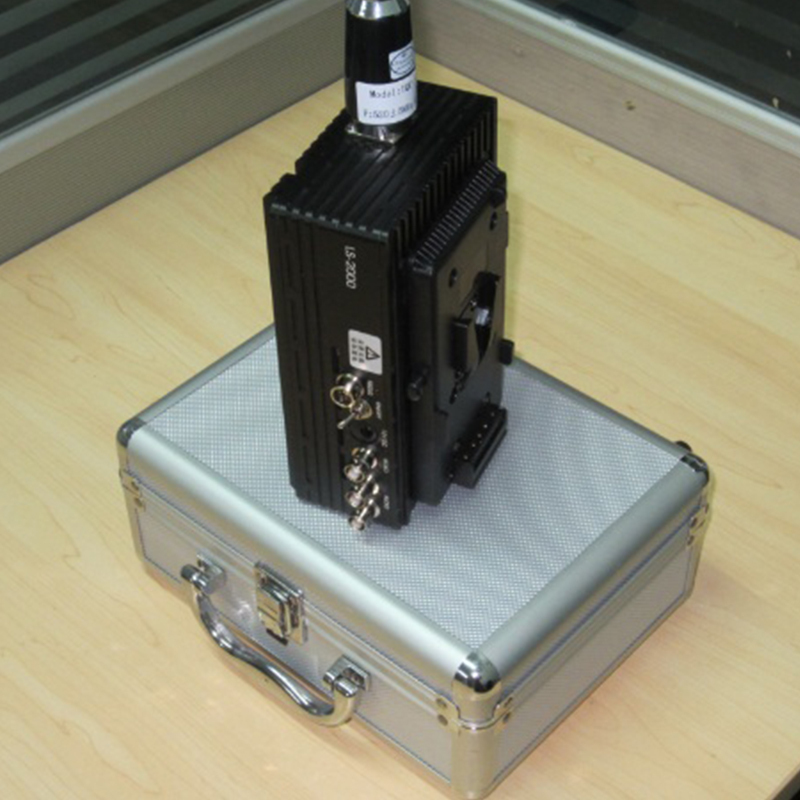

Image transmission device kit
Image transmission device system, adopting foreign advanced technology, TDS-OFDM modulation and demodulation technology, LDPC encrypted channel codec, data ARS 128-bit encryption, combined with multimedia transmission technologies such as digital image compression H.264/H.265 video coding and compression, can realize real-time and synchronous transmission of video and voice in a 150 km/h high-speed mobile environment.
It has significant advantages such as wide coverage, high sensitivity, good mobility, strong anti-interference and anti-fading capabilities, high transmission data rate, outstanding stability and reliability, etc. It provides emergency communications for on-site command, rescue, reconnaissance, field operations, etc. It is an ideal solution for long-distance, high-quality, high-speed, wireless real-time transmission.
The device transmits and displays 17-inch high-definition images, two-way voice intercom, and the maximum power is optional 3W. Under the condition of line of sight, the directional transmission of high-rise buildings and vehicles can reach more than 10 kilometers. The transmission distance from individual soldiers on the ground to the command vehicle without obstacles is more than 1000m, and the transmission distance from individual soldiers to the mobile receiving station is not less than 500m. It has on-site synchronous transmission, video recording, storage function and post-event summary playback function.
Products are widely used in military departments such as public security, armed police, fire fighting, field troops, as well as transportation, customs, oil fields, mining, water conservancy, electricity, financial rescue,real-time surveillance, investigation, evidence collection and live broadcast of the earthquake and catastrophic accident scene.
The camera is waterproof, dustproof, drop-proof, freeze-proof, and has a built-in 4-hour plug-in battery.
