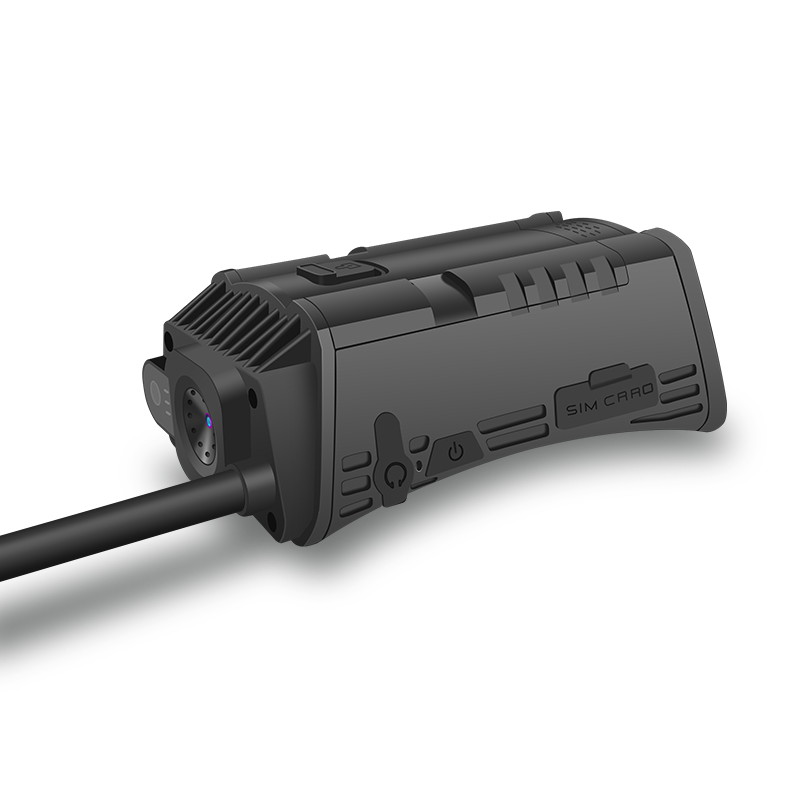

Helmet Style Infrared Thermal Imager
Helmet type infrared thermal imaging detection system uses advanced infrared imaging technology to penetrate the smoke, dust and even the dark environment, to help firefighters quickly find the source of fire ,search and rescue targets to improve fire fighting efficiency and greatly protect Firefighters personal safety and reduce the masses of property losses.
Product features:
1. without parallax
2. With through smoke function
3. small size, light weight and more comfortable to wear
4. large field of view, to help quickly find the source of fire,search and rescue targets
5. Low power consumption, continuous work over 4 hours
|
Detector performance |
|
|
Detector type |
Uncooled focal plane detector |
|
Pixel |
384×288 |
|
Image function |
|
|
Field of view angle |
40°×30° |
|
Noise equivalent temperature difference |
≤70mk@30℃ |
|
Wavelength range |
8~14μm |
|
Image display |
|
|
monitor |
OLED |
|
Environmental parameters |
|
|
Work temperature |
-20℃~80℃ |
|
storage temperature |
-40℃~70℃ |
|
Degree of protection |
IP66 |
|
Physical characteristics |
|
|
Weight |
Less than 600g |
|
interface |
|
|
Video output |
PAL
|
