Description Parameters
Description

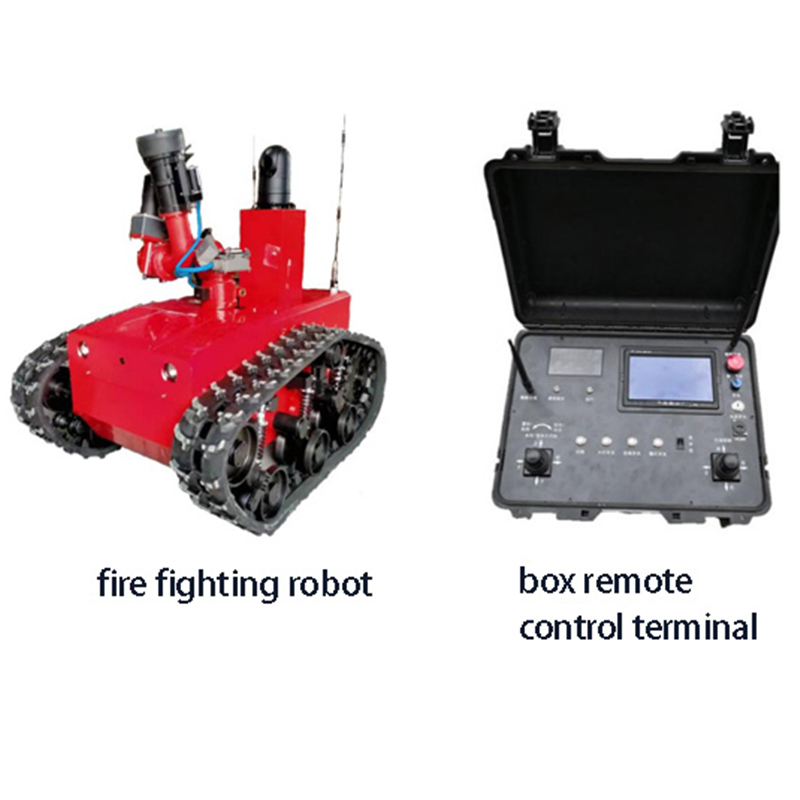

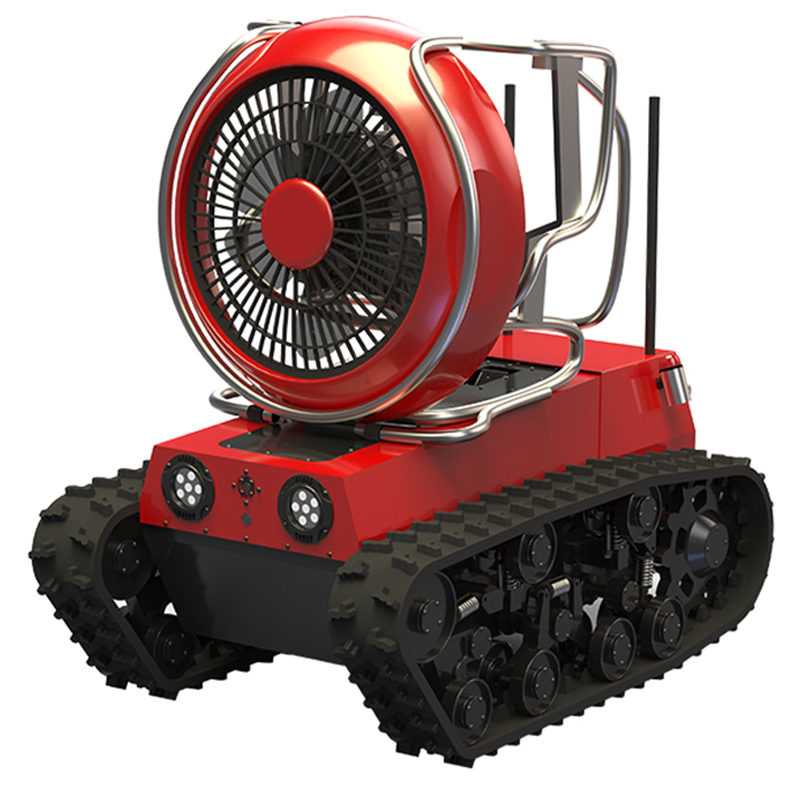

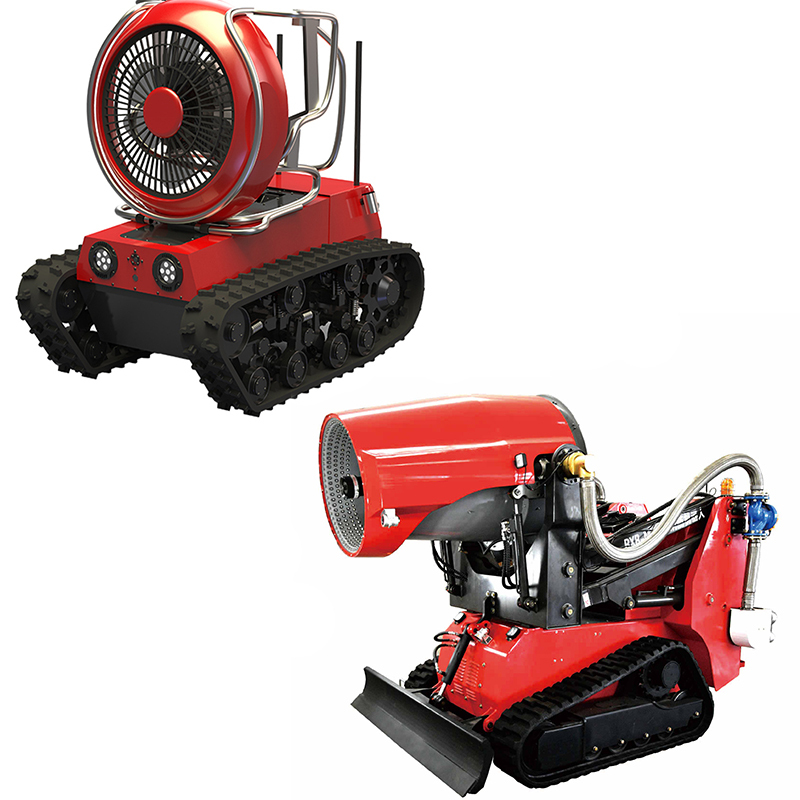

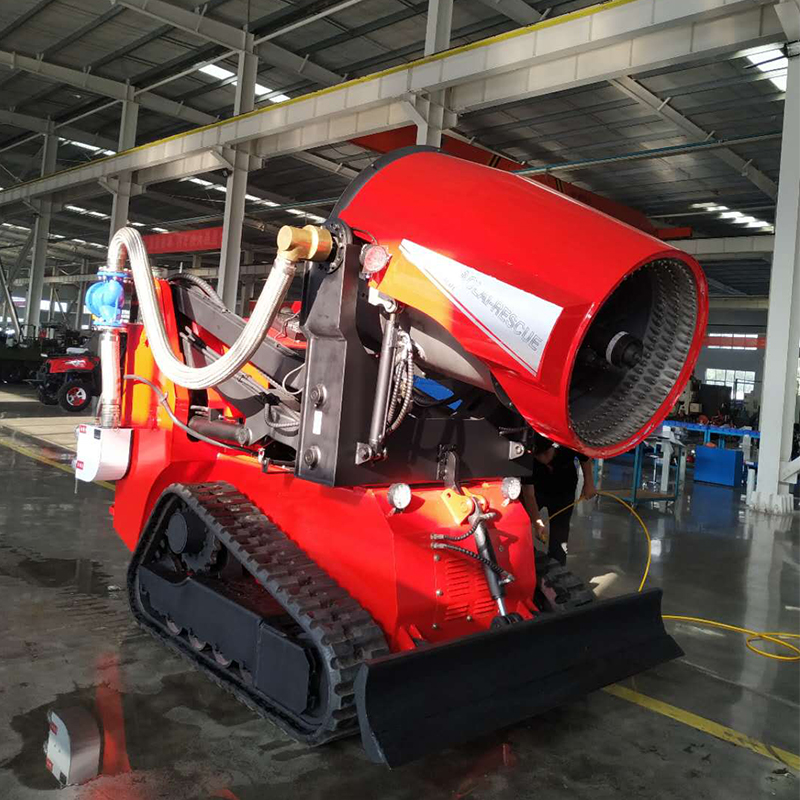

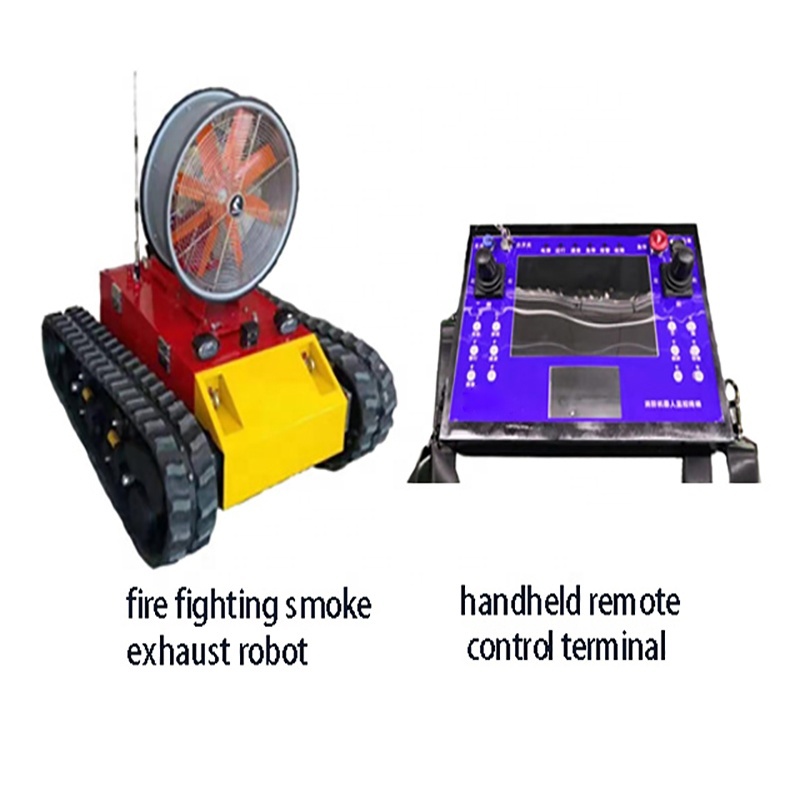

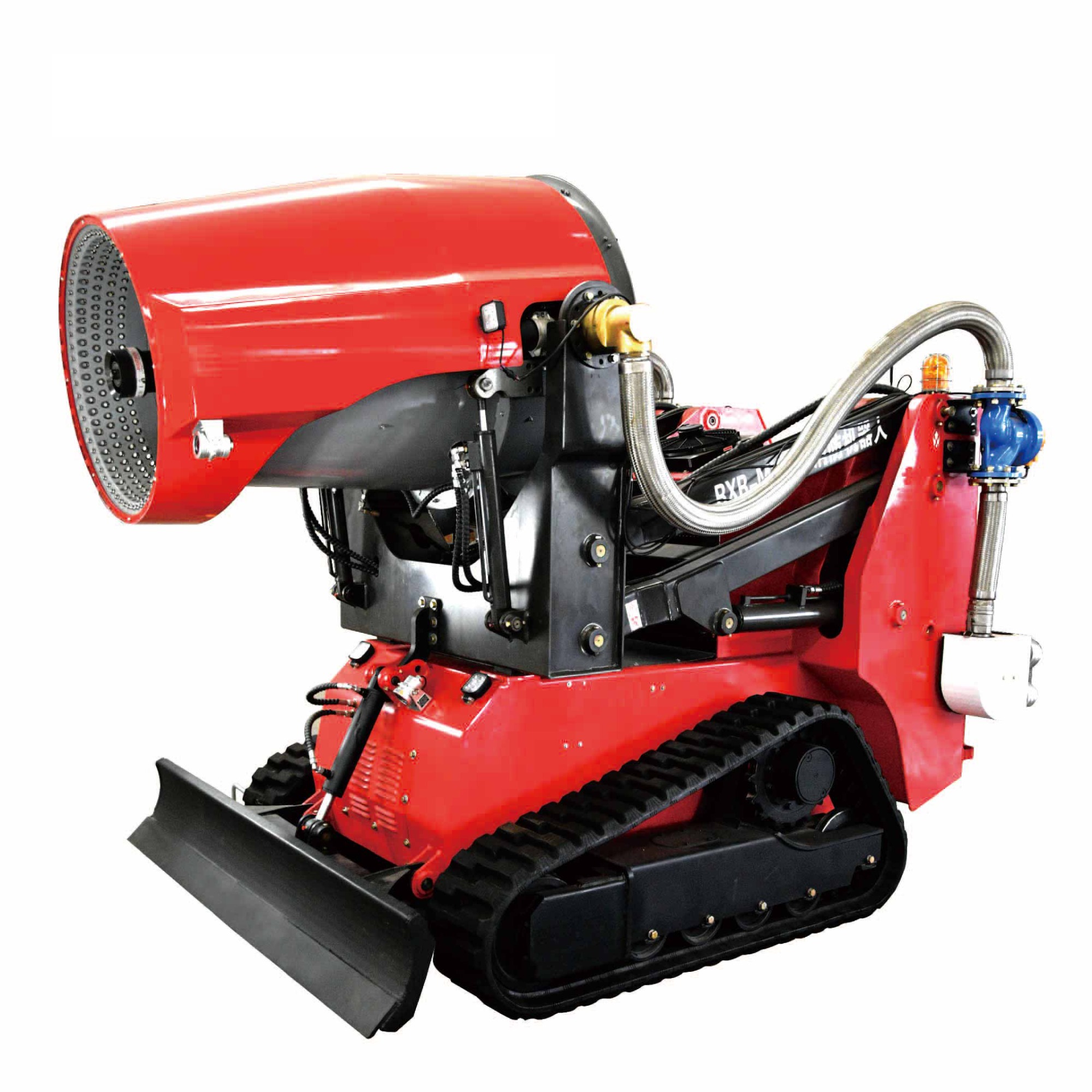

Firefighting smoke exhaust robot



Firefighting smoke exhaust robot is a remote-controlled fire-fighting and smoke-exhaust robot. It can perform videography, investigation, and climbing under unmanned operation. It is suitable for smoke exhaust and air supply in large warehouses, buildings and other dangerous places, as well as camera monitoring and information transmission.



It can be controlled remotely, effectively preventing accidental injury. When a secondary explosion may occur at the scene, it will cause very serious fatal injuries to firefighters. Robots can replace firefighters to go deep into dangerous disaster sites such as flammable, explosive, toxic and harmful, thick smoke, etc., to ensure the personal safety at front-line .



High driving stability, with the ability to climb slopes and overcome obstacles, easily enter a variety of harsh on-site environments. The front section is equipped with a high-definition camera, and transmits video data to the controller in real time to help operators collect and analyze the scene ahead. Each module is treated with anti-corrosion and can adapt to various harsh environments. Long continuous working time: up to 8 hours, suitable for long-term work tasks in large-scale fires.

Parameters
Item
Date
Overall weight
650kg
Dimension(L*W*H)
1400×1000×1200mm
Chassis type
crawler type
Drive motor
3kW/48V*2
Battery pack
48V/45Ah lead-acid battery
Working light
2*20W LED light
Gradient
100%
Working temperature
-20℃~+80℃
Obstacle clearance height
400mm
Driving speed
0-3.6km/h infinitely variable speed
Pressure
0.7-1.4 MPa
Traction force
5200N
Cooling system
natural air cooling
Control form
wireless remote control (through vision ≥1000m)
Fan drive form
hydraulic drive (fuel fan can be customized)
Smoke emission
15000m³/h
Fast maintenance
 less than 15 minutes
Image configuration
front and rear driving obstacle avoidance camera,360°dual-light PTZ camera
Technical index of remote control box
Size
400x280x60mm
Weight
3kg
Power supply
24V/2Ah lithium battery
Working time
about 2 hours (according to the working environment)
Video display screen
 4.5-inch color screen
Joystick
walking control x1, bodywork control x1
Buttons
image switching, lighting, warning lights, speed, etc.
